Ultra-Short Length Stainless Steel Ball Valve 316L DN100 PN16
Ball Valve
The manual stainless steel ball valve is driven by turning the hand wheel handle. Its working principle is to open or close the valve by rotating the ball valve core. It has outstanding advantages of its own structure. There is no friction when switching, it is easy to open and close, the seal is not easy to be damaged, and the service life is extremely long.
Ball Valve Specifications
| Product Name | Ultra-Short Length Stainless Steel Ball Valve 316L DN100 PN16 |
| PN | PN16 |
| DN | DN100 |
| Valve body material | SS316L |
| Applicable media | Oil,Gas,Water |
| Connection | Flange |
| Power | Handwheel |
| Unit weight | 3 KG |
| Warranty period | 18 months |
| Support customization | OEM,OBM,ODM |
DN100: Indicates a nominal diameter of 100 mm. This is a key specification for connecting valves to pipes, reflecting the approximate size of the valve passageway and adapting to piping systems of corresponding diameters.
PN16: Represents a nominal pressure of 16 megapascals (MPa). The nominal pressure is the maximum allowable operating pressure of the valve at a reference temperature, reflecting the valve's pressure resistance and ensuring proper operation within this pressure range.
SS316L: The material used for the valve is an austenitic stainless steel. F316L stainless steel offers excellent corrosion resistance, particularly in environments containing corrosive media such as chlorine and sulfur. It is commonly used in valve manufacturing for industries with high corrosion resistance requirements, such as the chemical, petroleum, and food industries.
Ball Valve advantages
1. Small fluid resistance, full-diameter ball valve has basically no flow resistance.
2. Simple structure, small size, light weight.
3. Tight and sure
4. Easy to operate, fast opening and closing, only need to rotate 90° from full open to full closed, remote control.
5. Easy maintenance, ball valve has a simple structure, the sealing ring is generally movable, and the induction replacement is relatively convenient.
Who we are
SND is headquartered in Wu An Industrial Park, Hebei Province. It is a modern valve manufacturing company integrating R&D, production, sales and services. The company has been deeply involved in the field of fluid control for more than 20 years, focusing on providing high-quality valve products and customized solutions for industries such as petrochemicals, electric power and energy, municipal water services, metallurgy and shipbuilding, and medicine and food.
The company's main products include: ball valves, gate valves, stop valves, butterfly valves, check valves, regulating valves, special valves, etc. The product materials include cast iron, cast steel, stainless steel, alloy steel, etc., which can meet the needs of complex working conditions such as high temperature and high pressure, corrosion resistance, and wear resistance. Relying on advanced CAD/CAE design systems, CNC machining centers and intelligent testing equipment, the company continues to improve product accuracy and performance, and has passed ISO 9001 quality management system certification, API 6D/API 607 and other international authoritative certifications to ensure that products meet domestic and international standards.
If you are interested, please contact me.
I will give you a great discount price,I am online 24 hours a day.
Product Tags:
|
|

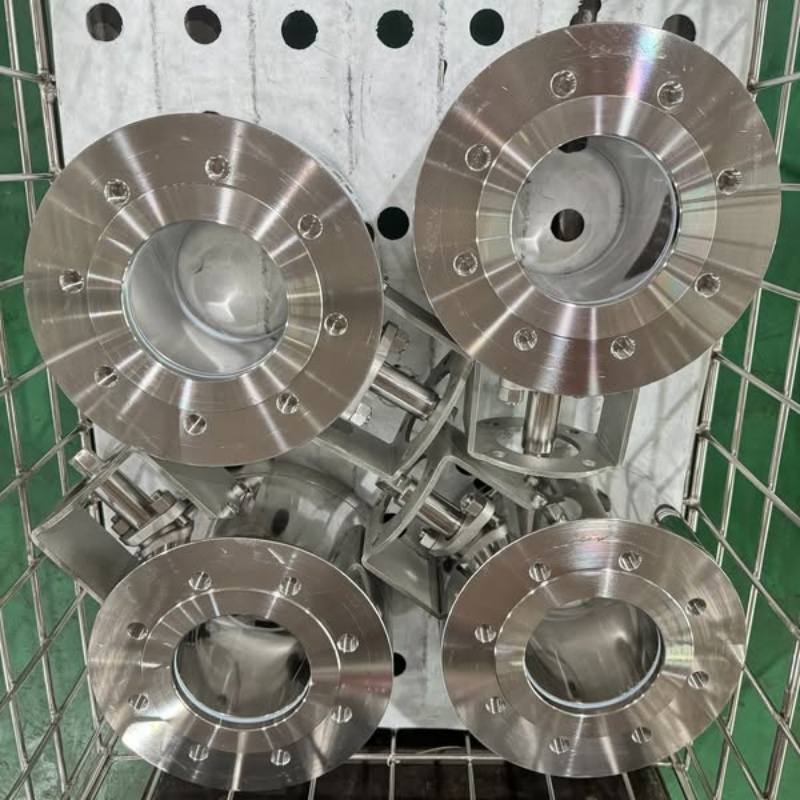

Ultra-Short Length Stainless steel Ball Valve 316L DN100 PN16 Images
|
